View detailsDN15 / DN20
Valve-Controlled Ultrasonic Water Meter
An integrated DN15–DN20 ultrasonic water meter with remote valve control and wireless communication options.
Send Inquiry
TECHNICAL DATA
Performance specifications
- Permanent flow Q3
- 2.5 / 4.0 m³/h
- Dynamic range
- R250 / R400 / R500 / R800
- Meter length
- 165 / 190 mm
- Maximum pressure
- 1.6 MPa
- Protection class
- IP68
- Medium temperature
- 0.1–50 °C (T50)
- Ambient temperature
- −25–55 °C
- Accuracy
- ±5% (Q1≤Q<Q2); ±2% (Q2≤Q≤Q4)
- Communication
- LoRaWAN Class A / NB-IoT / WM-Bus
- Connection
- G3/4B / G1B

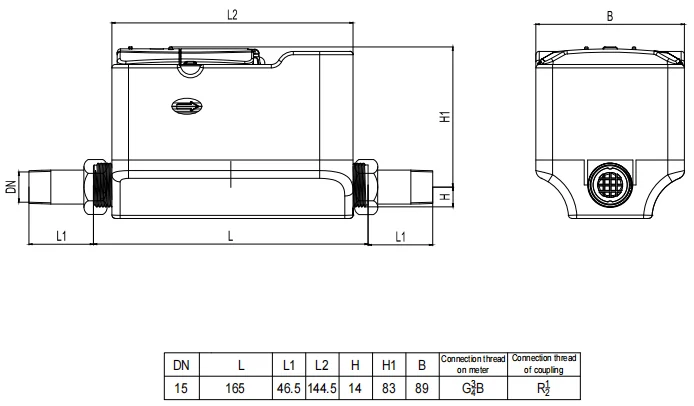

DRAWINGS
Dimensions & installation
