View detailsDN25 / DN40 / DN50
DN25–DN50 Ultrasonic Water Meter
A versatile ultrasonic meter family with threaded and flanged configurations across DN25, DN40 and DN50.
Send Inquiry
TECHNICAL DATA
Performance specifications
- Permanent flow Q3
- 6.3–10 / 16 / 25–40 m³/h
- Dynamic range
- R250 / R400 / R500 / R800
- Meter length
- 200–300 mm
- Maximum pressure
- 1.6 MPa
- Protection class
- IP68
- Medium temperature
- 0.1–50 °C (T50)
- Ambient temperature
- −25–55 °C
- Accuracy
- ±5% (Q1≤Q<Q2); ±2% (Q2≤Q≤Q4)
- Communication
- LoRaWAN Class A / NB-IoT / M-Bus / WM-Bus / Pulse
- Connection
- G1 1/4B / G2B / G2 1/2B
DRAWINGS

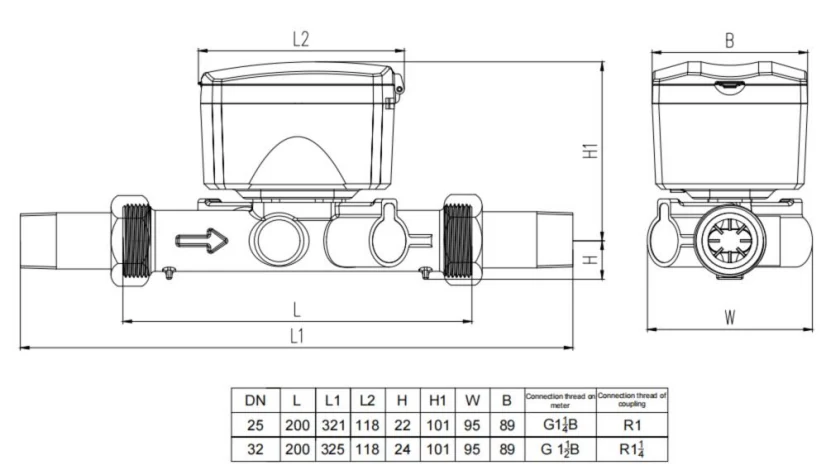

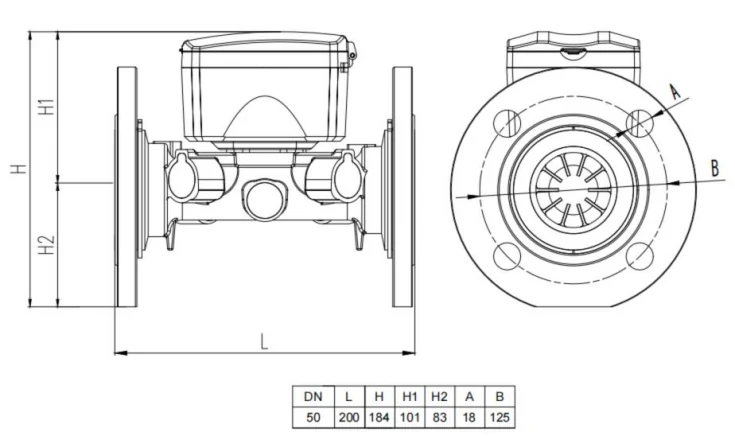

Dimensions & installation
