DN40–DN50 Ultrasonic Water Meter
A high-flow ultrasonic water meter platform for DN40 and DN50 installations with multiple communication outputs.
Send Inquiry
TECHNICAL DATA
Performance specifications
- Permanent flow Q3
- 16 / 25 m³/h
- Dynamic range
- R250 / R400 / R500
- Meter length
- 200–300 / 200–270 mm
- Maximum pressure
- 1.6 MPa
- Protection class
- IP68
- Medium temperature
- 0.1–50 °C (T50)
- Ambient temperature
- −25–55 °C
- Accuracy
- ±5% (Q1≤Q<Q2); ±2% (Q2≤Q≤Q4)
- Communication
- LoRaWAN Class A / NB-IoT / M-Bus / WM-Bus / Pulse
- Connection
- G2B / flange

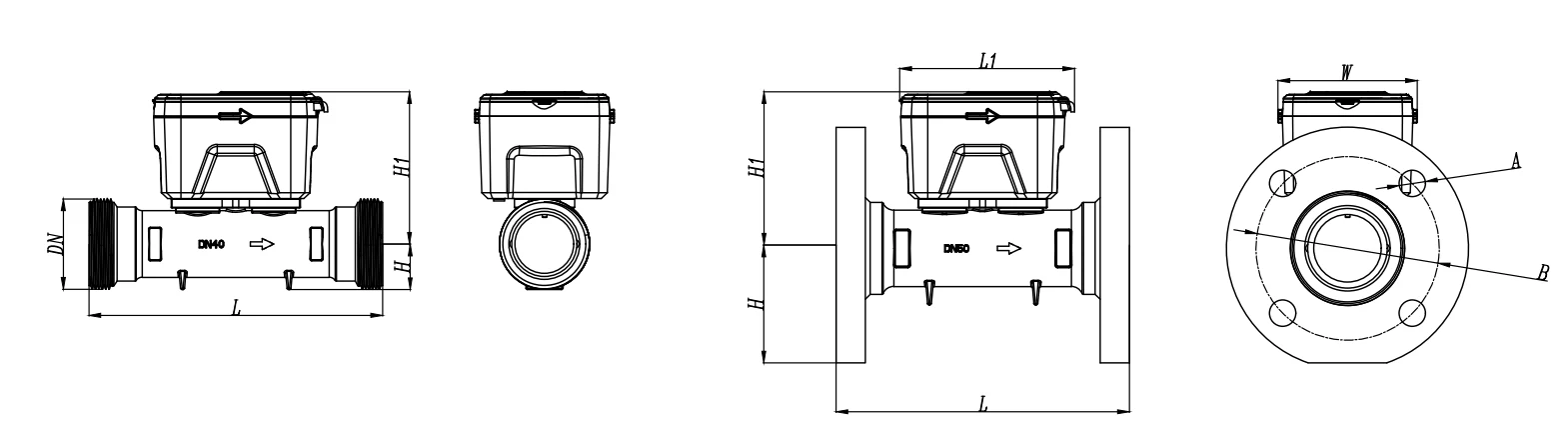

DRAWINGS
Dimensions & installation
